Wholesale Price China Pipe Cutting Torch Machine - Portable Pipe and Plate CNC cutting machine – Meisar Detail:
System advantages
1, 7 inch color LCD screen, human operation, Chinese and English, domestic and Outside various types of users can operate.
2, Can achieve cutting function, any pipe processing;
3, pipe end cut off function, you can arbitrarily set the chamfering angle
4, Shrimp lips elbow cut, can set the number of section, elbow angle
5, Eccentric saddle head cutting; mother tube hole cutting can be used with the riding type, plug-in branch;
Features
- Meisar MS portable intersection cutting machine can achieve two kinds of tube and plate cutting method, can greatly save customers cost;
- Machine support round tube guide rail is with24KG / M fine grinding guide, has heavy bearing capacity, long life and other advantages.
- Chuck motor is with high precision Taiwan Delta servo motor drive, low noise, high precision, long service life;
- Tube support frame is using finishing screw; when support the workpiece, can save more effort;
Technical Parameters
Name |
CNC tube plate dualuse cutting machine |
|||
Model | MS-1030X | MS-1060X | MS-1530XGB | MS-1560XGB |
Motor type | Delta ASDA400W | Delta ASDA400W | Delta ASDA400W | Delta ASDA400W |
Chuck size |
250-type threejaw chuck (customizable) |
|||
Input voltage |
Single phase AC-220V |
|||
input power |
About 800W |
|||
Effective cutting length of steel pipe | 3000mm | 6000mm | 3000mm | 6000mm |
Pipe diameter |
StandardΦ40mm-300mm (can be customized large diameter) |
|||
Maximum carrying weight | ≤500KG | ≤800KG | ≤300KG | ≤800KG |
Support rail size |
24KG / M fine grinding guide |
|||
How to use it |
Intersecting line cutting |
Tube plate dual purpose cutting |
||
Customize information |
For other sizes, weight, diameter requirements can be customized according to customer requirements |
|||
Cutting type |
Plasma / flame cutting |
|||
Tube oval |
≤2% |
|||
Number of pipe supports | 1Set | 2Sets | 1Set | 2Sets |
Number of NC linkage axes | 2 axis | 2 axis | 2 axis | 2 axis |
Torch lift |
≤ 105mm |
|||
Operating accuracy |
± 0.2mm/m |
|||
Flame cutting thickness |
5mm-120mm |
|||
Plasma cutting thickness |
Depending on the size of the plasma power supply |
|||
Plasma arc pressure is raised |
HP-105 Standard for the Changzhou Hayes HP-105 |
|||
Gas supply requirements |
Acetylene / propane gas pressure ≤ 0.1MP |
|||
Oxygensupply requirements |
Oxygen maximum pressure ≤ 1MP |
|||
Cutting table |
Tube cutting Taiwan for the one-piece stnjcture, we provide cutting table drawings customers self-processing |
Customer use site

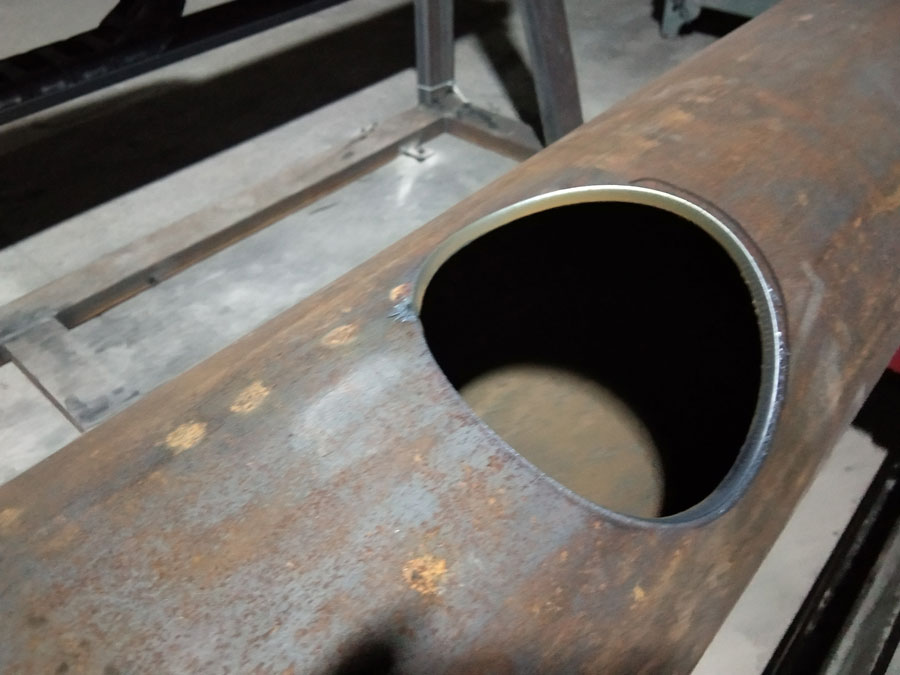

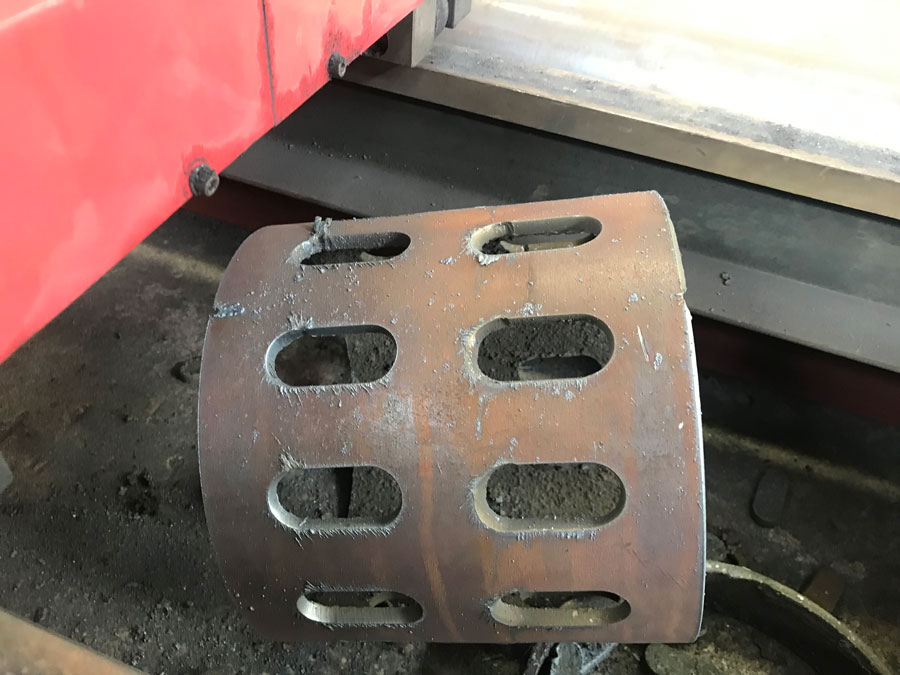

Cutting Sample
