Features
- The whole machine adopts the welded steel plate welded structure. The beam is cut by laser cutting and then welded together. The upper and lower sides of the beam are bent by 90 degrees with the steel plate, which can reduce the deformation and increase the rigidity.
- The beam hanging plate is welded with 20mm steel plate, and the whole surface is processed by gantry planer to reduce the deformation of the whole surface and improve the precision.
- After the whole machine is welded, firstly, the aging treatment is performed after stress aging, followed by the surface rust removal treatment. After the primer is applied, the surface is painted.
Technical parameter
| Model |
MS-4GB-3212 |
|
| Overall size |
3200×12000 |
|
| Effective cutting range |
2300 x 10000mm |
|
| Round tube cutting length |
12000mm |
|
| Cutting tube diameter |
Φ50-500mm (can be customized according to customer requirements) |
|
| Operating accuracy |
0.2mm/m |
|
| Pip bearing weight |
≤1500KG |
|
| Numerical control linkage number |
3-axis 2 linkage |
|
| Number of supports |
4 sets |
|
| Tube ellipticity |
≤2% |
|
| Cutting type |
tandard: flame + plasma dual-purpose cutting (can be customized) |
|
| transfer method |
Gear rack drive |
|
| Torch lift |
≤160mm |
|
| Flame cutting thickness |
Piercing thickness: 5-60mm Edge cutting thickness: 5-200mm |
|
| Plasma cutting thickness |
According to the size of the plasma power supply |
|
| Gas supprfy requirements |
Acetylene / propane gas pressure ≤0.1 MP |
|
| Oxygen supply requirements |
Oxygen maximum pressure ≤1MP |
|
| Cutting table infrastructure |
We will provide the gantry cutting table drawing for the user reference (basic equipment and H-beam by the customer to buy) |
|

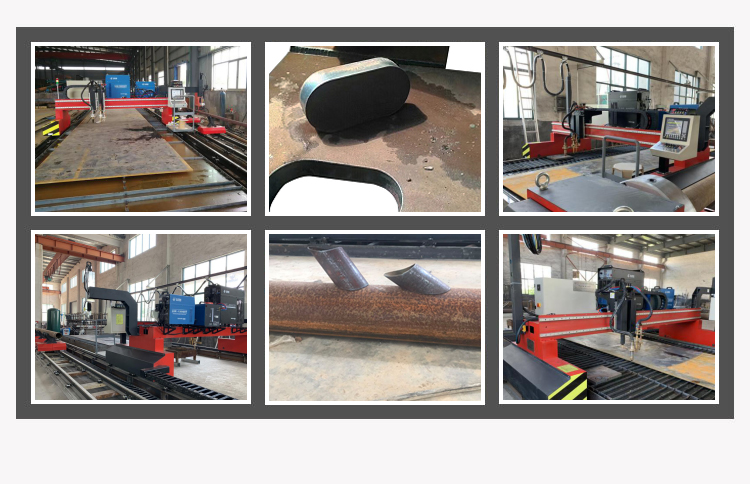

Product detail pictures:
