OEM/ODM Factory Plasma Power Supply - MS-4B-4080 Gantry CNC Plasma Cutting Machine – Meisar Detail:

Features

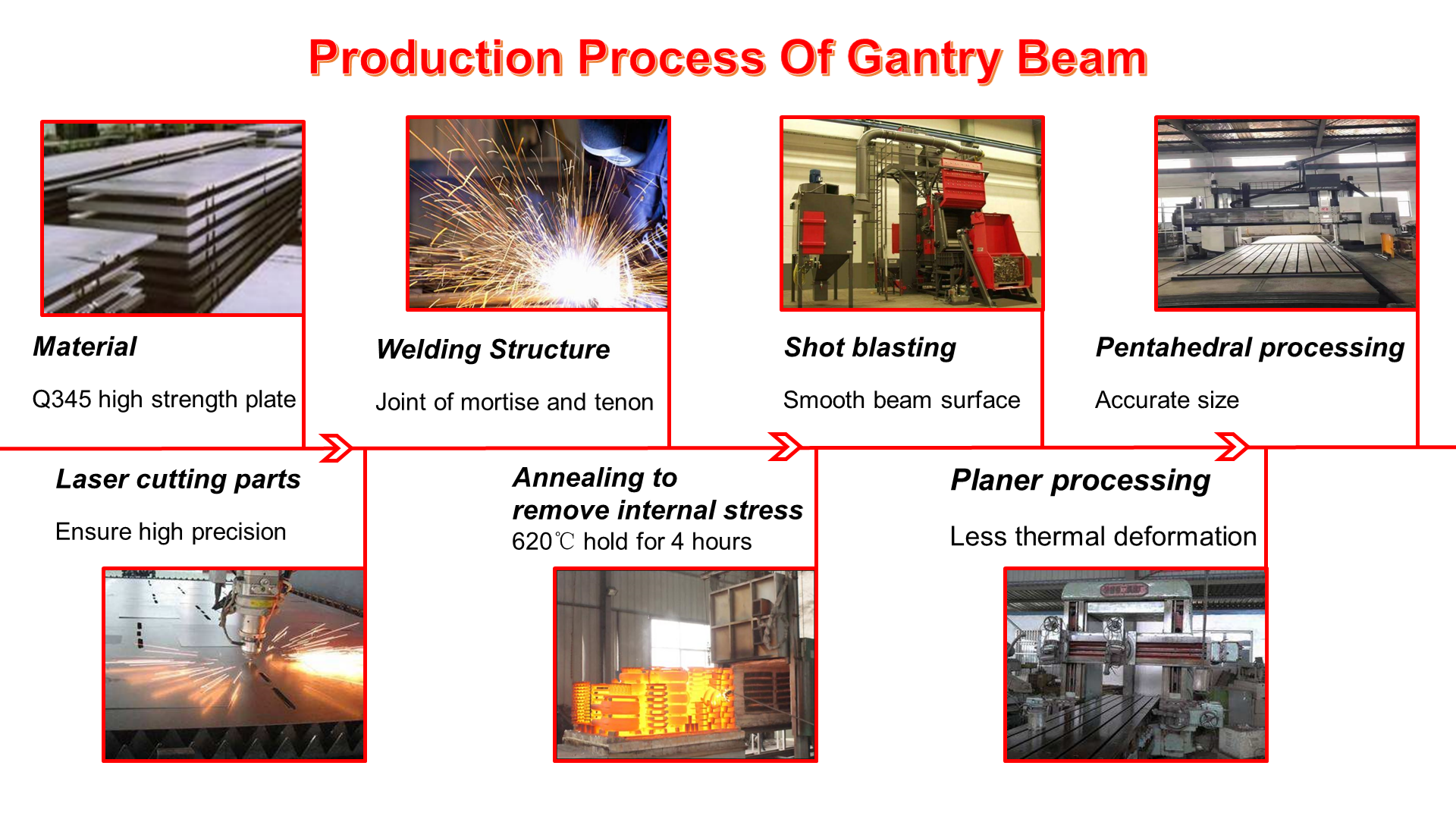

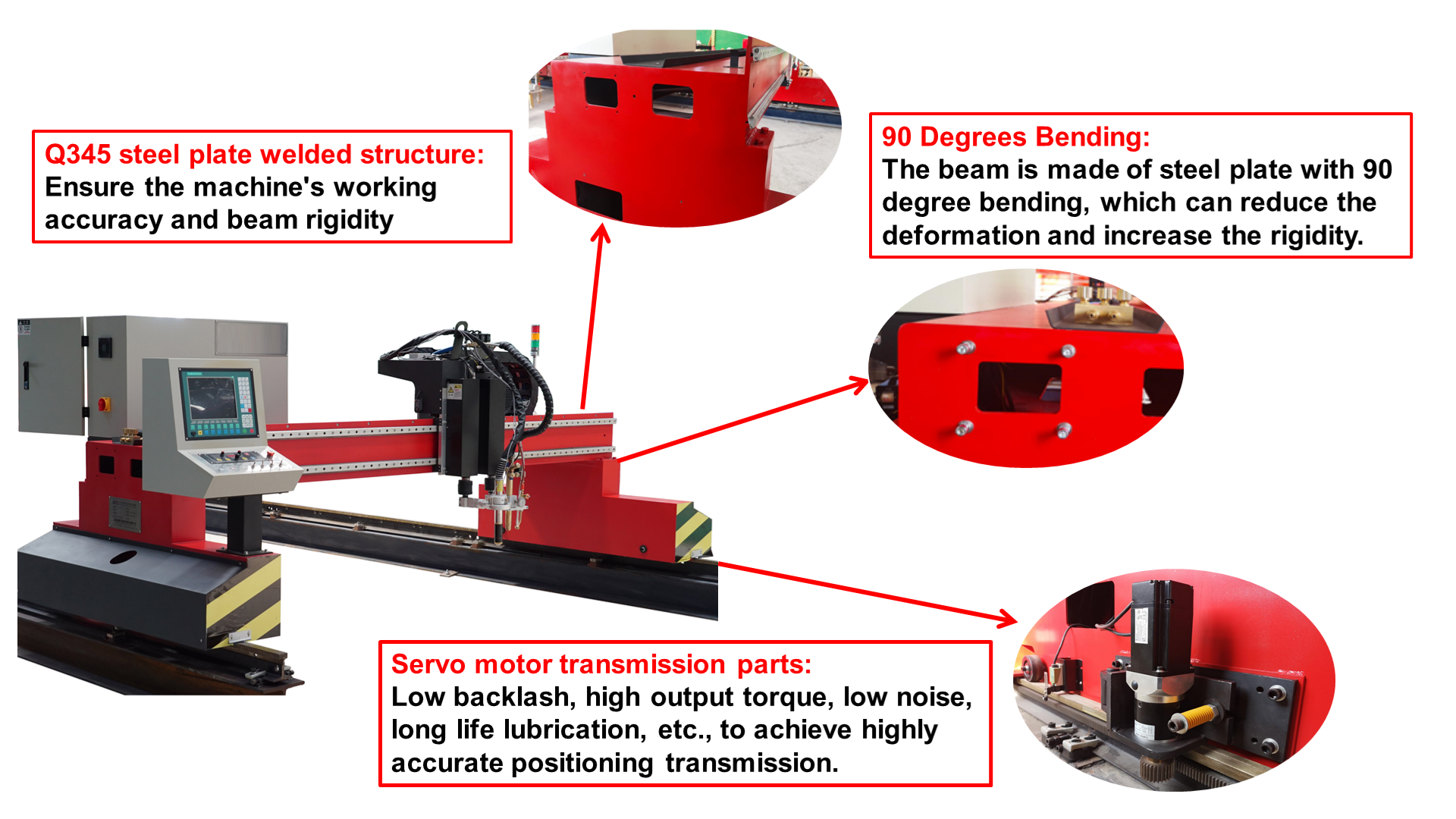

  1. The whole machine adopts the welded steel plate welded structure. The beam is cut by laser cutting and then welded together. The upper and lower sides of the beam are bent by 90 degrees with the steel plate, which can reduce the deformation and increase the rigidity.
  2. The beam hanging plate is welded with 20mm steel plate, and the whole surface is processed by gantry planer to reduce the deformation of the whole surface and improve the precision.
  3. After the whole machine is welded, firstly, the aging treatment is performed after stress aging, followed by the surface rust removal treatment. After the primer is applied, the surface is painted.

Technical parameter

Model

MS-4B (4080)

Machine structure

Laser cutting, steel plate welding structure with heat treatment

 Effective cutting rangeX/Y)

3000 x 6000mm

 Lateral rail spacing

4000mm

Longitudinal guide length

8000mm

The number of lifts

Standard for the double moving lift device

Input voltage

AV-220V Single phase AV-220V

input power

About 2500W

Running speed

0-10000mm/min

Cutting type

1, plasma cutting (with plasma power) 2, flame cutting 3, flame + plasma cutting

Torch lift

≤160mm

Operating accuracy

0.2mm/m

Flame cutting thickness

Piercing thickness: 5-60mm Edge cutting thickness: 5-200mm

Plasma cutting thickness

According to the size of the plasma power supply

Flame automatic Ignition device

With flame automatic ignition device function

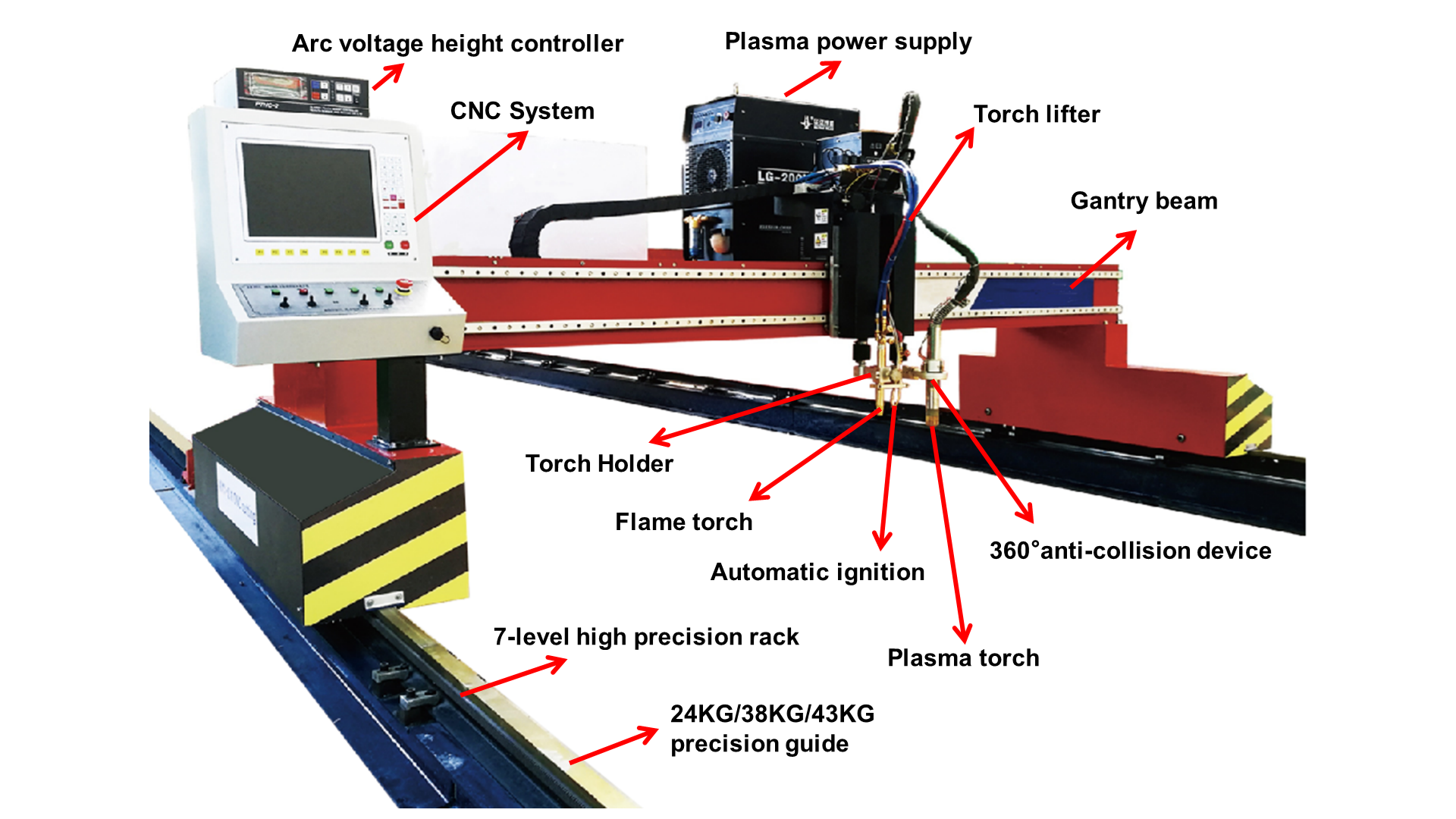

Product detail pictures:

OEM/ODM Factory Plasma Power Supply - MS-4B-4080 Gantry CNC Plasma Cutting Machine  – Meisar detail pictures

OEM/ODM Factory Plasma Power Supply - MS-4B-4080 Gantry CNC Plasma Cutting Machine  – Meisar detail pictures

OEM/ODM Factory Plasma Power Supply - MS-4B-4080 Gantry CNC Plasma Cutting Machine  – Meisar detail pictures

OEM/ODM Factory Plasma Power Supply - MS-4B-4080 Gantry CNC Plasma Cutting Machine  – Meisar detail pictures
