MS-2000HLW Handheld 3 in 1 Fiber Laser Welding Machine 2000W Laser Welder

Short Description:


Product Detail

Product Tags

Product information

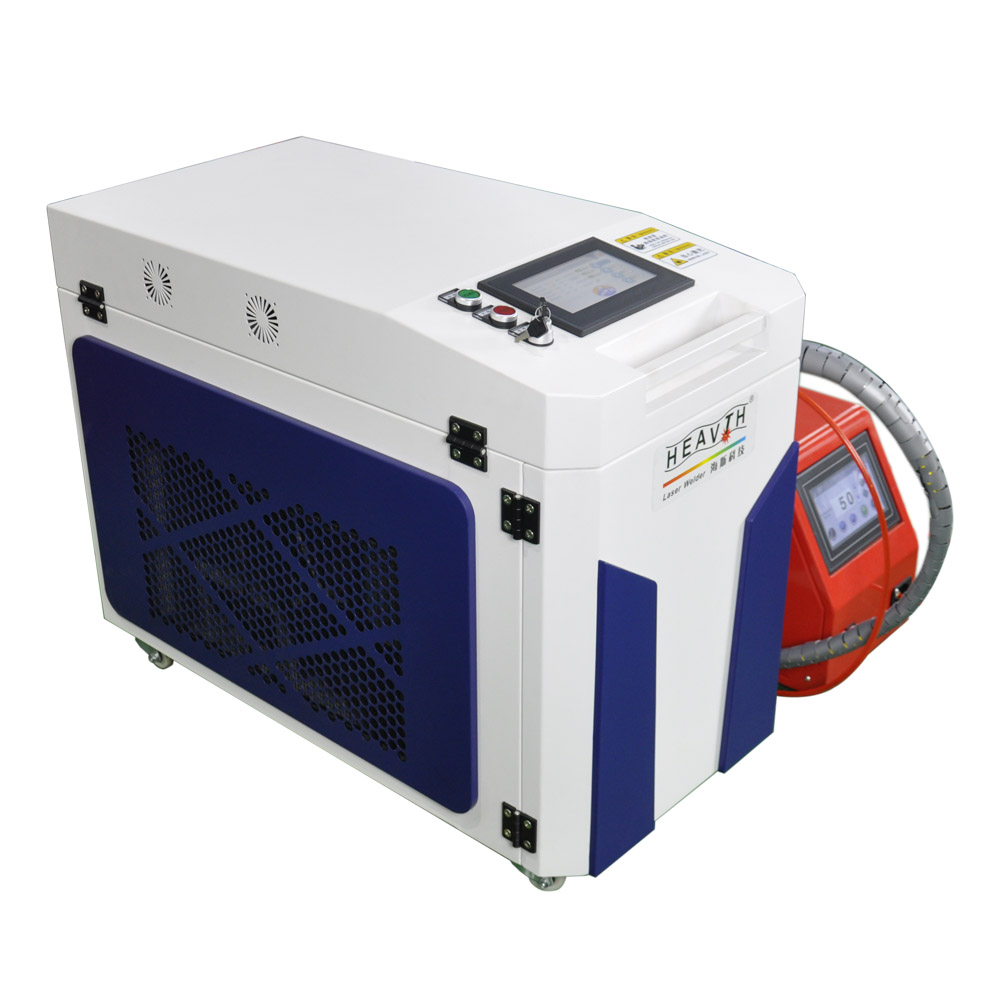

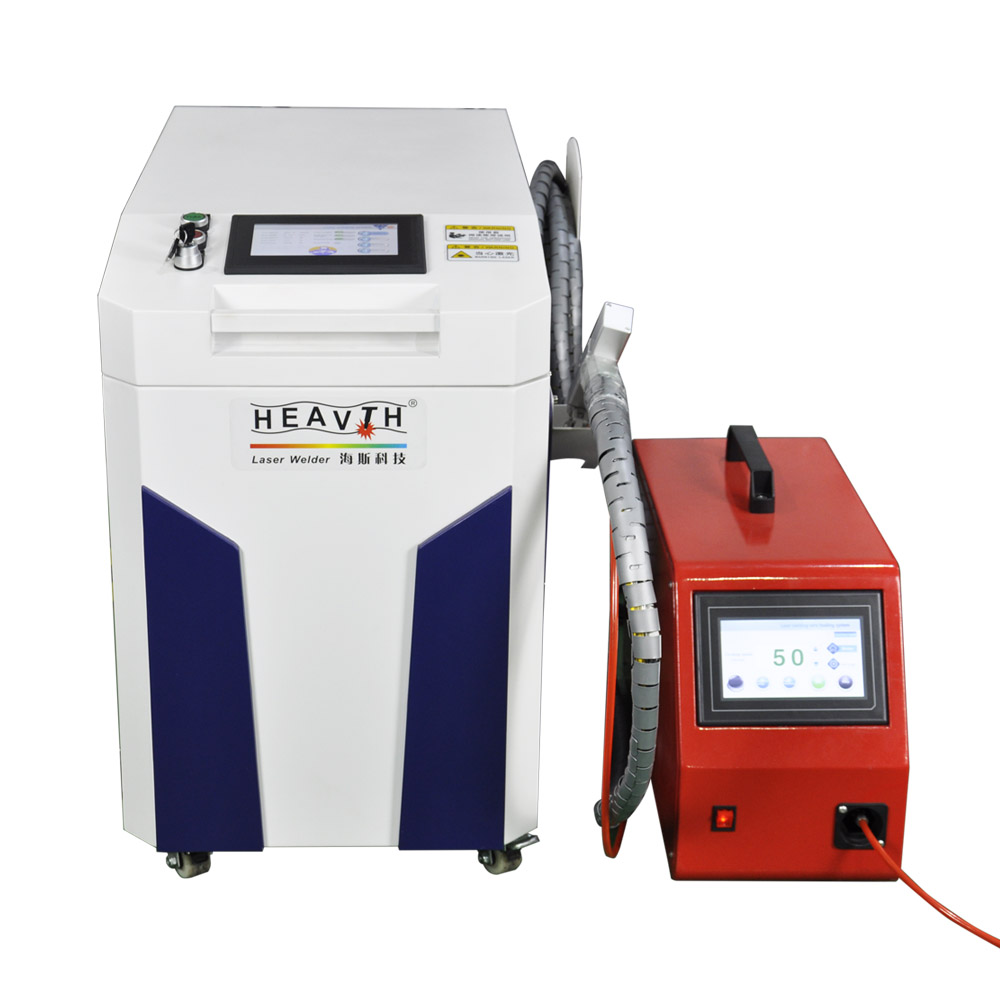

Fiber laser handheld welding machine
Along with the development of fiber laser source, hand-held laser welding machine was widely used and changed the industrial
welding market by making it much simpler for different angle and welding processing like stitch welding, tailor welding and seam
welding.
It could completely replace the applications of traditional arc welder and electric welder technology
in thin stainless steel, iron sheet, aluminum plate and other metal sheet.
Product Details
Model
MS-1000 HLW
MS-1500 HLW
MS-2000 HLW
MS-3000 HLW
Laser Source
1000W
1500W
2000W
3000W
Shielding Gas
Argon,Nitrogen,Air
Argon,Nitrogen,Air
Argon,Nitrogen,Air
Argon,Nitrogen,Air
Maximum Thickness
3.5mm
5mm
6.5mm
9mm
Input Power
6KW
7KW
9.5KW
12KW

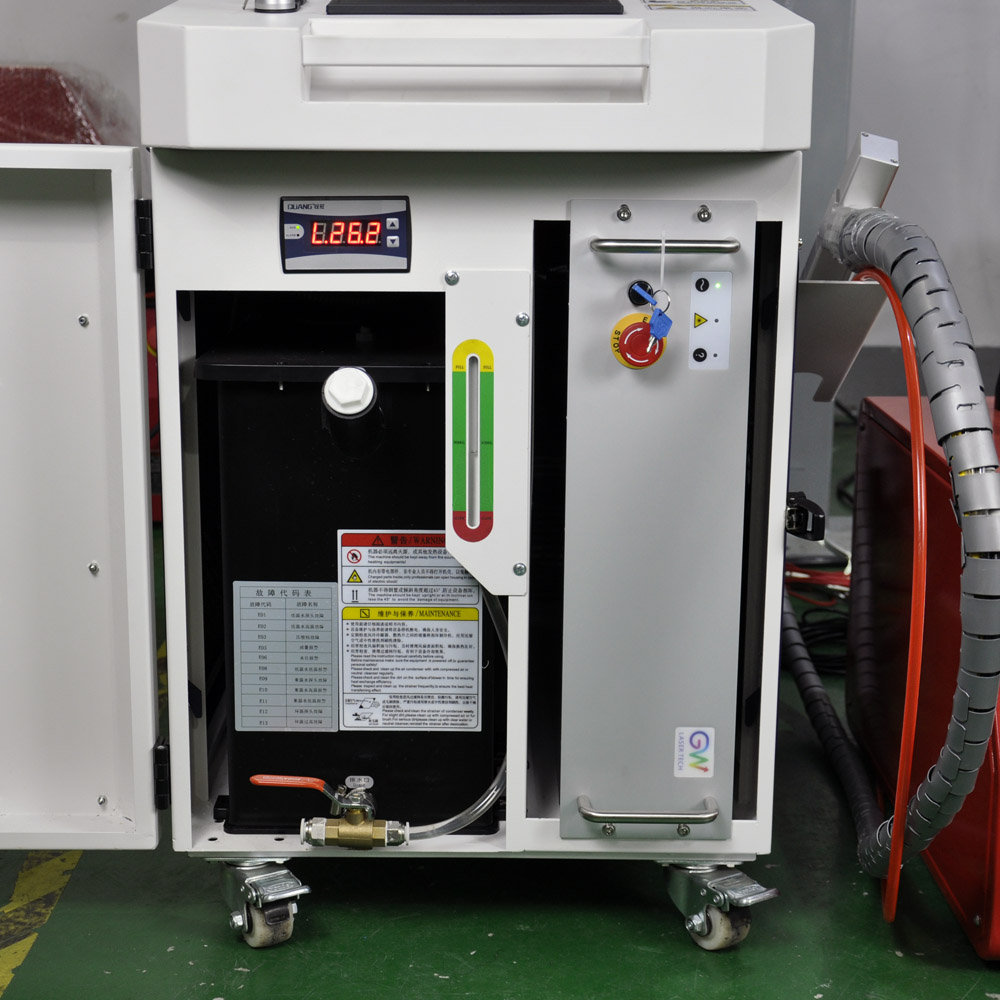

Water Chiller
16L 3000W
16L 3000W
19L 4000w
21L 5000W
Mains Supply
AC220V 1PH
AC220V 1PH
AC380V 3PH
AC380V 3PH
Laser Wavelength
1080±3nm
Fiber Length
10m
Focal Length
150nm
Cooling mode
intelligent water chiller
Overrall Dimension
850*450*630mm
Total Weight
130kg (155 lbs.)
Product Advantages
1.Smart interior design and good interactive control system which enlarge the tolerance range of the welding parts and the       weld width. It solves the disadvantage of small laser welding spot with better weld formation /shaping.
2.Lightweight and ergonomic design, comfortable grip, easy to control with one hand and simplified operation.
3.Multiple safety alarms, automatic locks light after removing the workpiece, with high security.
4.Smooth & good-looking weld seam, fast speed, no consumables, no discoloration, no need for extra processing.
5.A variety of angle nozzles can be configured to meet the welding needs of different products.
Company Profile

Meisar(Changzhou) Intelligent Technology Co , Ltd . was established in 2006 . We are located in Changzhou , which is the key city of Jiangsu province near to Shanghai .

We are supplying Laser CNC cutting machine , Portable CNC cutting machine , Gantry CNC cutting machine , CNC Pipe/tube cutting machine and other welding & cutting equipment . we have strong research and development ability . For now , we are supplying 6 series and over 30 kinds of products . We develop and design various types of CNC cutting machine and related accessories which are widely used in the large number of industrial circle .

Our company has strong technical force , advanced production equipment , detection means complete and excellent product quality .

Our products are sold to U.S.A , Canada , Australia , Europe , South East Asia , Africa etc , more than 100 countries and areas , and supply OEM service for more than 20 manufactures . Heavth is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with an irresistible force.

Certifications
Cutting finished products show
Product packaging
