MS-4B (7012) Gantry CNC Plasma Cutting Machine

Short Description:

This series of plasma cutting machine is a high efficiency and high performance equipment, which uses gantry type, single drive or double drive. This machine uses advanced CNC system from abroad, such as Spanish FAGOR and American Hypertherm. Its excellent cutting parameters, reliable and stable features ensure the perfect cutting effect. CNC flame/plasma torch has auto height regulator and auto ignition functions, which is convenient for use.

Send email to us Download as PDF

Product Detail

Product Tags

Features

The whole machine adopts the welded steel plate welded structure. The beam is cut by laser cutting and then welded together. The upper and lower sides of the beam are bent by 90 degrees with the steel plate, which can reduce the deformation and increase the rigidity.
The beam hanging plate is welded with 20mm steel plate, and the whole surface is processed by gantry planer to reduce the deformation of the whole surface and improve the precision.
After the whole machine is welded, firstly, the aging treatment is performed after stress aging, followed by the surface rust removal treatment. After the primer is applied, the surface is painted.

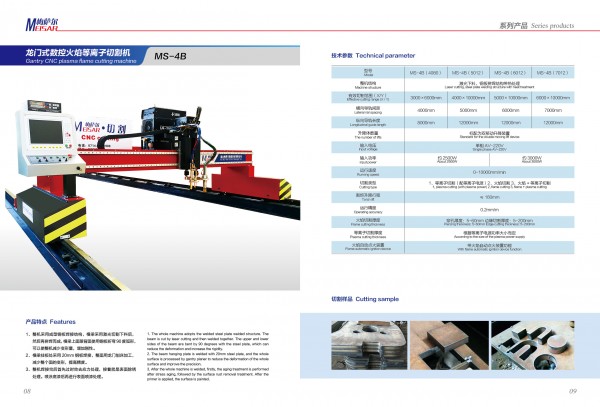

Technical parameter

Model	MS-4B (7012)
Machine structure	Laser cutting, steel plate welding structure with heat treatment
Effective cutting range（X/Y)	6000 x 10000mm
Lateral rail spacing	7000mm
Longitudinal guide length	12000mm
The number of lifts	Standard for the double moving lift device
Input voltage	AV-220V Single phase AV-220V
input power	About 3000W
Running speed	0-10000mm/min
Cutting type	1, plasma cutting (with plasma power) 2, flame cutting 3, flame + plasma cutting
Torch lift	≤160mm
Operating accuracy	0.2mm/m
Flame cutting thickness	Piercing thickness: 5-60mm Edge cutting thickness: 5-200mm
Plasma cutting thickness	According to the size of the plasma power supply
Flame automatic Ignition device	With flame automatic ignition device function
