Low production efficiency. Mainly used in automobile manufacturing, mechanical processing, electronic processing, cultural relic restoration, mold industry, shipbuilding industry, food processing, petrochemical industry and other industries.
CleanPro2000CW Water Cooling Fiber Laser Rust Paint Remove Less Damage Cleaning Machine
Short Description:
Product information

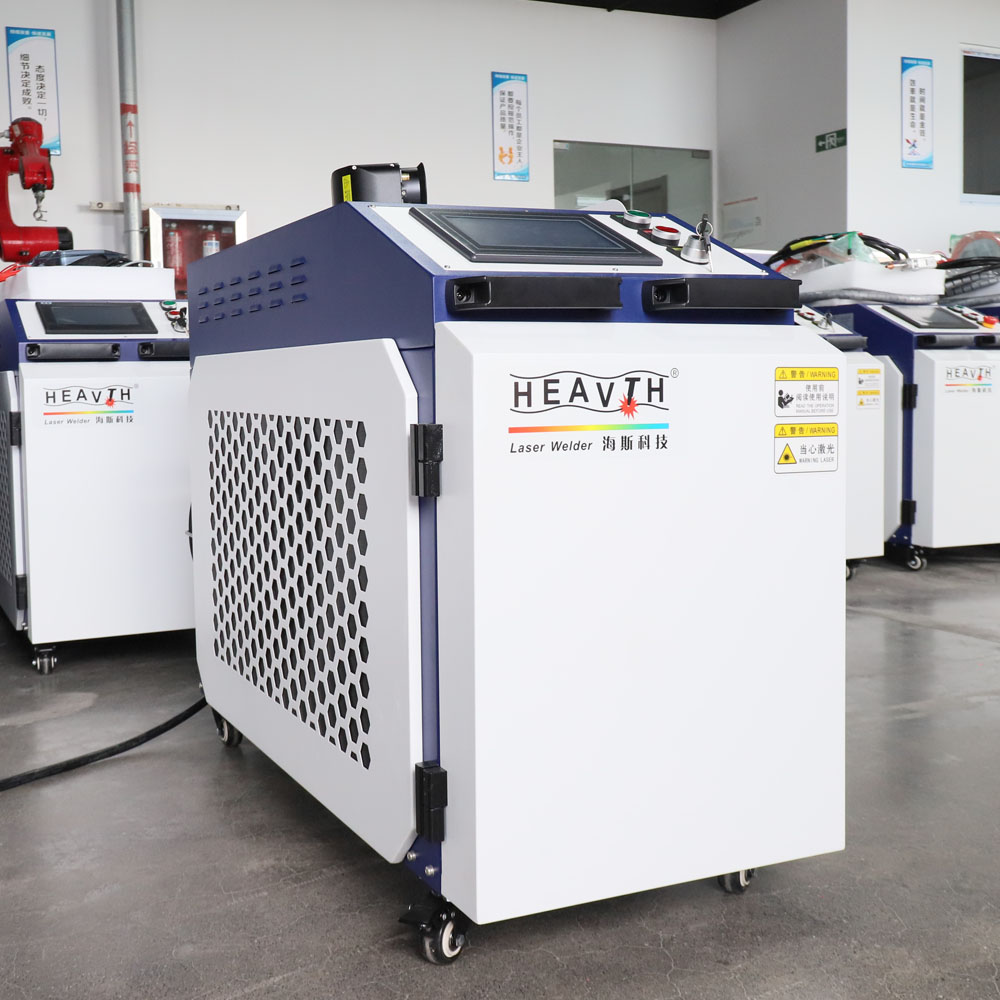

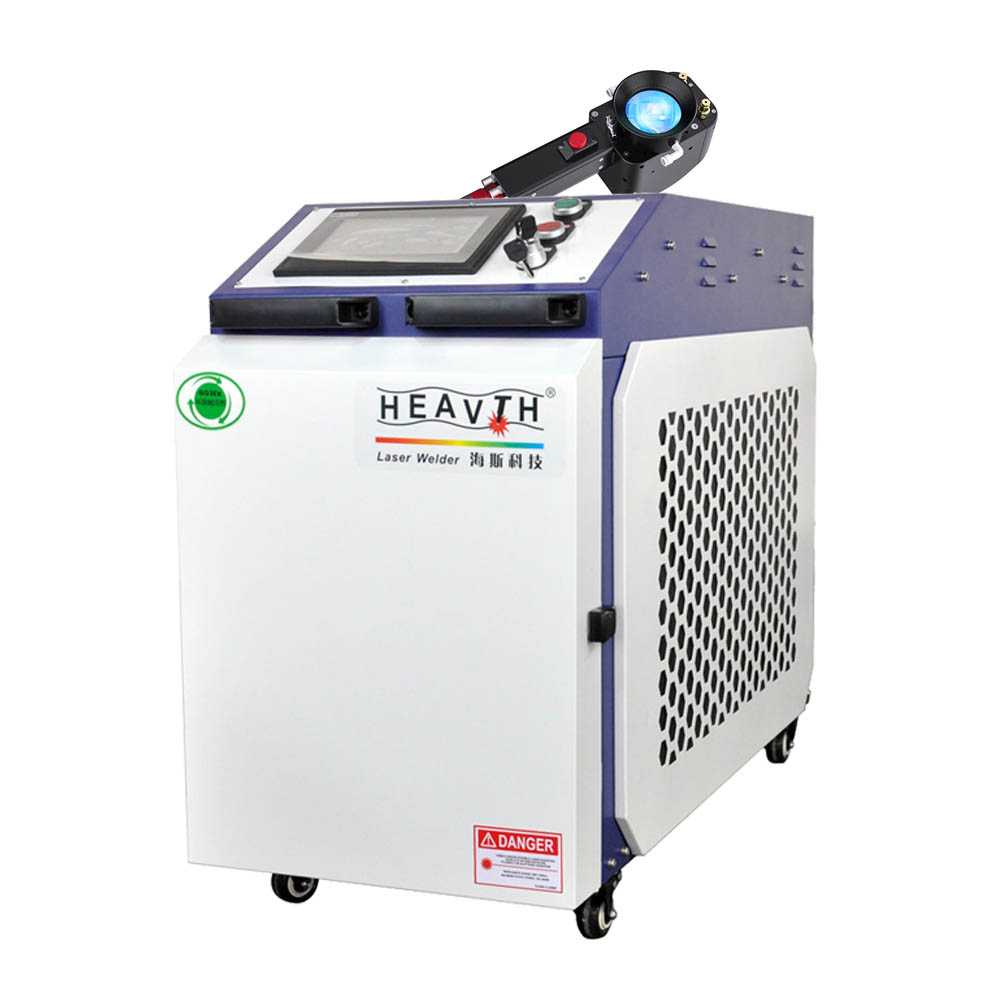

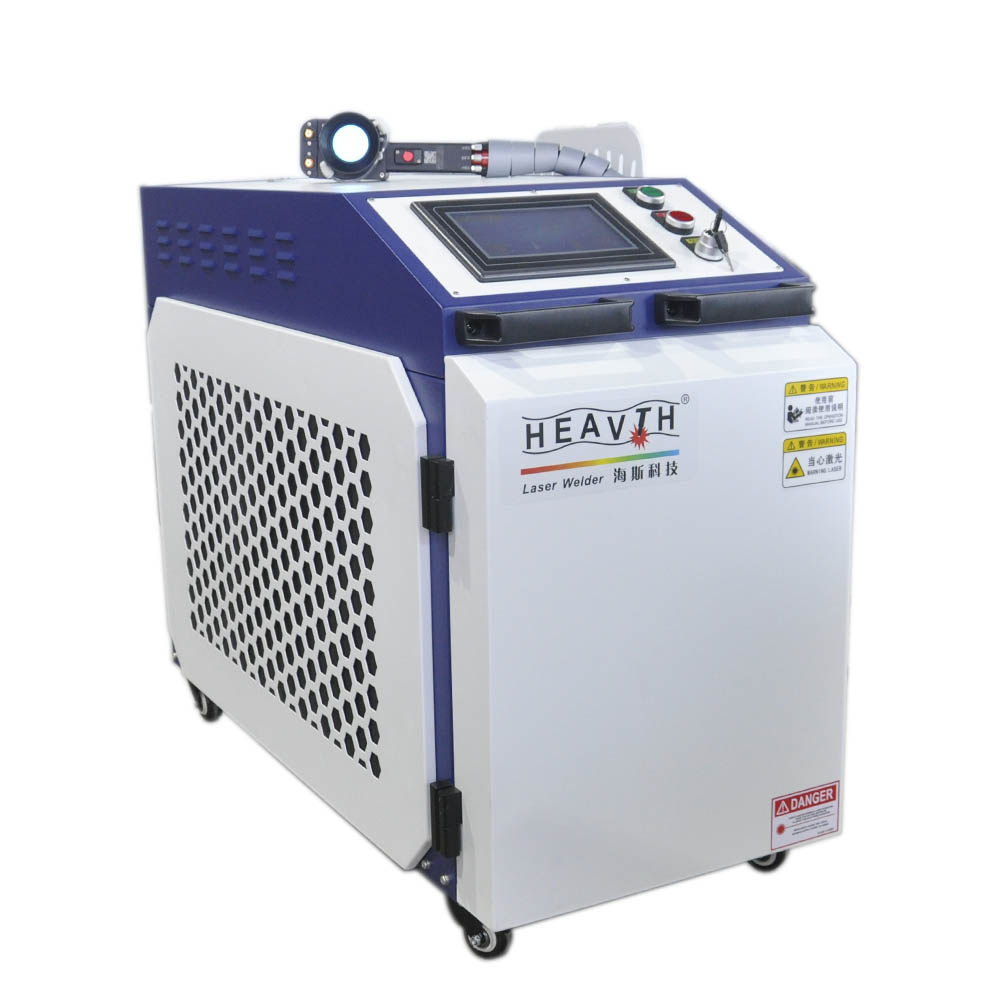

Fiber laser handheld cleaning machine
The laser cleaning machine can efficiently remove resin, oil stains, stains, dirt, rust, coating, plating, and paint on the surface of the workpiece, meeting the cleaning requirements of complex shapes and fine positioning in the industrial processing field, achieving a cleaner cleaning effect with higher cleanliness, and a higher overall cost.
Product Details

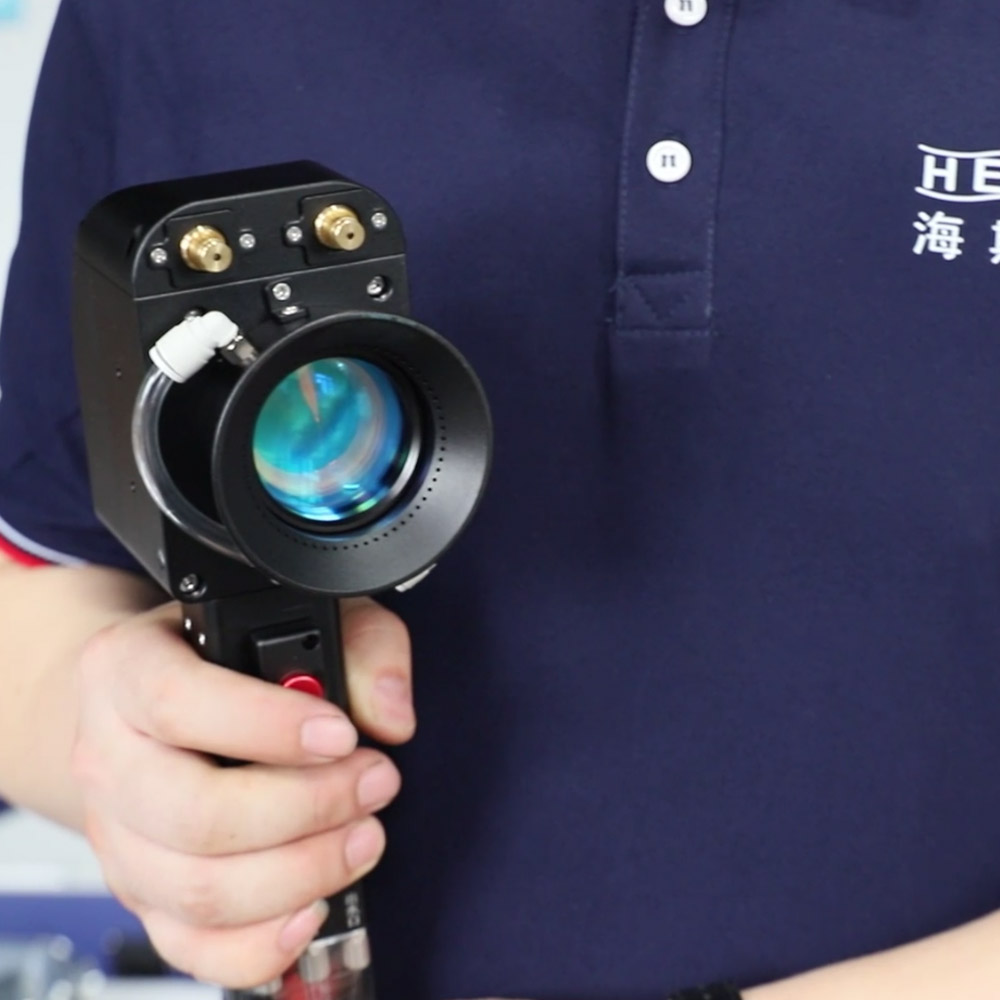

Using super cleaning head, the cleaning effect is beautiful
The standard configuration is Raycus and MAX laser source, the quality is stable and reliable
Equipment installation and line connection specifications, stable and reliable quality
Touch screen design, easy to operate, more secure
Chiller data indicator, easy to know the machine operation data
There are a variety of chillers and cabinet styles such as Bingyue, Hanli, Maohexing, etc
Product advantages
High integration Highly integrated with two-dimensional scanning galvanometer, optical lens components, cleaning control card software and human-machine interface, The system is stable and reliable, compact in structure, precise in optical path, good in sealing, light in weight and convenient in installation, The machine using high-speed motors and unique motor control algorithms, the cleaning efficiency is high. High security, It has multi-level security mechanisms such as password login, temperature protection, motor anomaly protection, and of line protection, and has automatic sleep function during idle hours.
Model
|
CleanPro1000CW
|
CleanPro1500CW
|
CleanPro2000CW
|
CleanPro3000CW
|
Laser types
|
Continuous fiber laser
|
|||
Rated output power
|
1000W
|
1500W
|
2000W
|
3000W
|
Laser centre wavelength
|
1050~1090nm
|
|||
Laser interface
|
QBH
|
|||
Cleaning width
|
<500mm
|
|||
Cleaning length
|
<500mm
|
|||
Cleaning accuracy
|
<1um
|
|||
Support laser power
|
<1000W/CW
|
<1500W/CW
|
<2000W/Pulse
|
<3000W/Pulse
|
Cleaning speed
|
<20000mm/s
|
<30000mm/s
|
<30000mm/s
|
<30000mm/s
|
Cleaning Mode
|
Line/Rectangle/Circle/Ellipse/Sine
|
|||
Protection temperature zone
|
1
|
|||
Water-cooled
|
Yes
|
|||
Lens protection air circuit
|
Yes
|
|||
Power supply
|
±15V/5A
|
|||
Operation temperature
|
25±10(℃)
|
|||
Gunbody weight
|
1600g
|
|||
Dimension LWH(mm)
|
251x91x108
|
Application
Laser cleaning is a new generation of surface cleaning technology that can widely replace traditional cleaning processes such as chemistry grinding, sandblasting, etc. it has the advantages of no grinding, non-contact, low thermal effect, no damage, and is suitable for objects of various materials. This product is a handheld laser cleaning machine can reach 420mm scan width range.
