China Factory for Plasma Cutting Stainless Steel - MS-4GB-4080 Gantry Pipe and Plate integrated cutting machine – Meisar Detail:

Features

  1. The whole machine adopts the welded steel plate welded structure. The beam is cut by laser cutting and then welded together. The upper and lower sides of the beam are bent by 90 degrees with the steel plate, which can reduce the deformation and increase the rigidity.
  2. The beam hanging plate is welded with 20mm steel plate, and the whole surface is processed by gantry planer to reduce the deformation of the whole surface and improve the precision.
  3. After the whole machine is welded, firstly, the aging treatment is performed after stress aging, followed by the surface rust removal treatment. After the primer is applied, the surface is painted.

Technical parameter

Model

MS-4GB-4080

Overall size

4000 x 8000

Effective cutting range

3000 x 6000mm

Round tube cutting length

8000mm

Cutting tube diameter

Φ50-500mm (can be customized according to customer requirements)

Operating accuracy

0.2mm/m

Pip bearing weight

2000KG

Numerical control linkage number

3-axis 2 linkage

Number of supports

3 sets

Tube ellipticity

≤2%

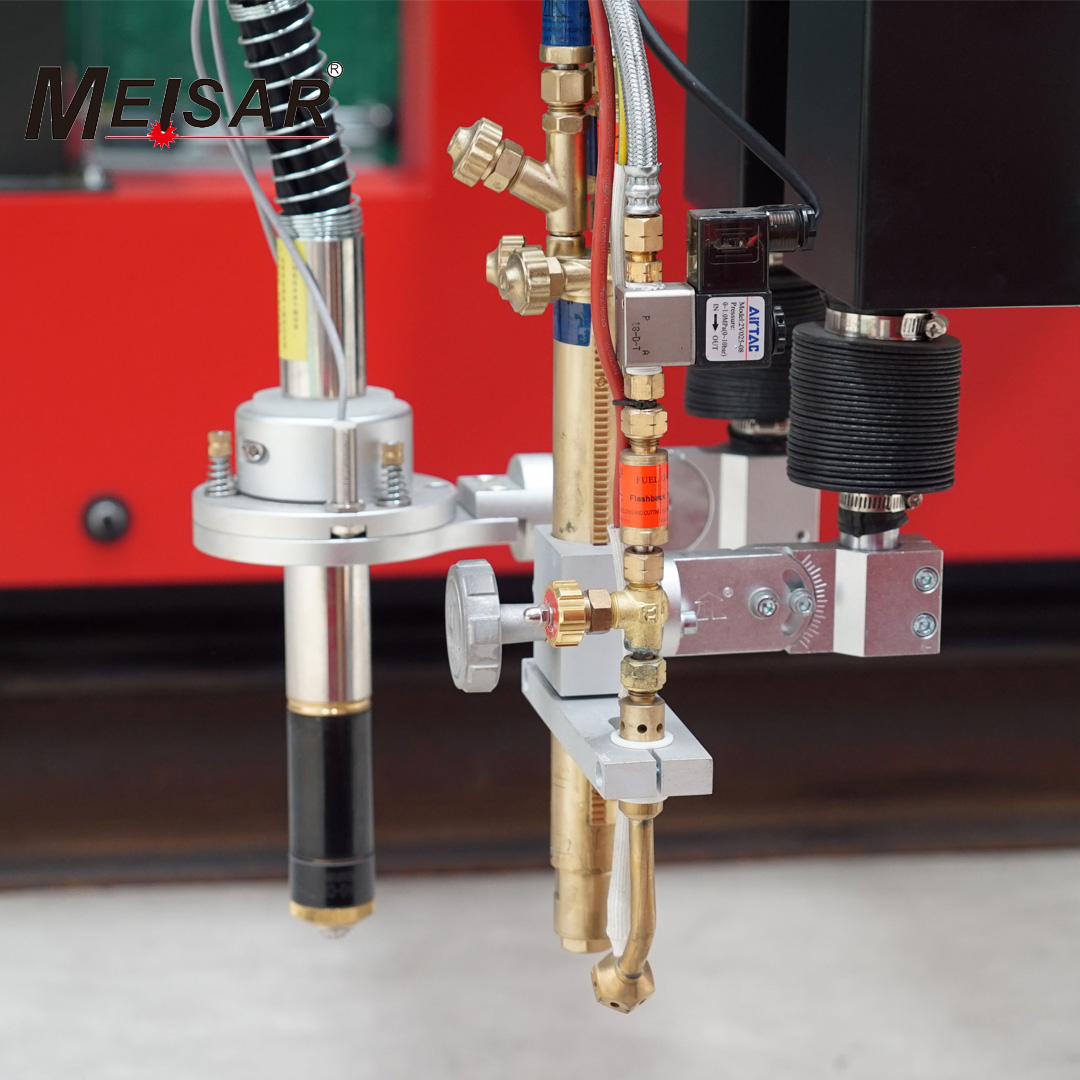

 Cutting type

tandard: flame + plasma dual-purpose cutting (can be customized)

transfer method

Gear rack drive

Torch lift

≤160mm

Flame cutting thickness

Piercing thickness: 5-60mm Edge cutting thickness: 5-200mm

Plasma cutting thickness

According to the size of the plasma power supply

Gas supprfy requirements

Acetylene / propane gas pressure ≤0.1 MP

Oxygen supply requirements

Oxygen maximum pressure ≤1MP

Cutting table infrastructure

We will provide the gantry cutting table drawing for the user reference (basic equipment and H-beam by the customer to buy)

2020082503

详情页_06龙门板管详情详情页_08 详情页_04 详情页5 详情页_09 详情页_10


Product detail pictures:

China Factory for Plasma Cutting Stainless Steel - MS-4GB-4080 Gantry Pipe and Plate integrated cutting machine – Meisar detail pictures

China Factory for Plasma Cutting Stainless Steel - MS-4GB-4080 Gantry Pipe and Plate integrated cutting machine – Meisar detail pictures

China Factory for Plasma Cutting Stainless Steel - MS-4GB-4080 Gantry Pipe and Plate integrated cutting machine – Meisar detail pictures
